Specifications

• Size
  120 x 120 x 25 mm
• Screw hole pattern
  105 x 105 mm

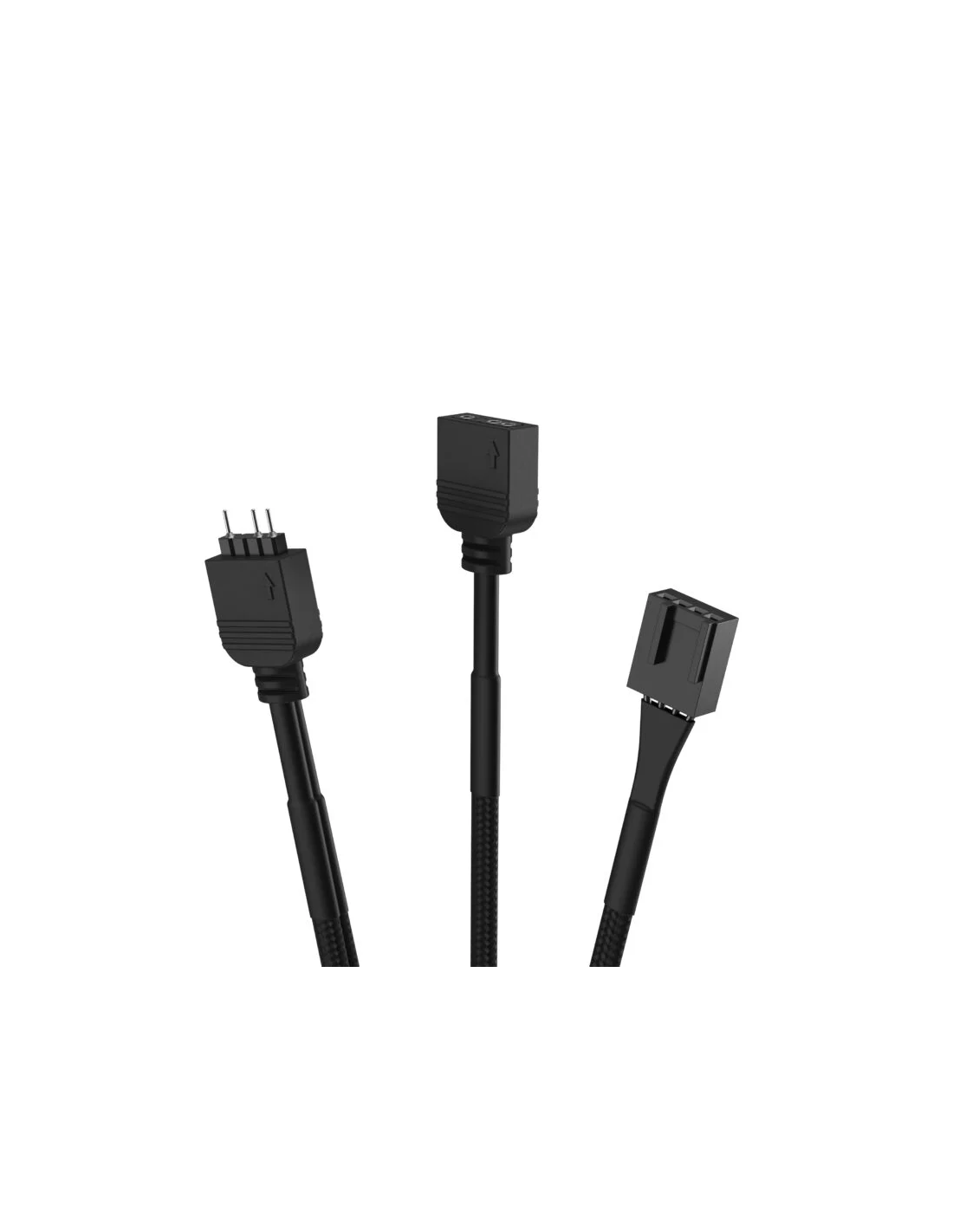

• Fan connector
  4-pin PWM
• RGB connector
  3-pin 5V addressable RGB
• Bearing
  LLS
• Number of blades
  7
• Rotational speed
  500 – 2000 RPM
• Noise level
  32.7 dB(A)
• Airflow (CFM)
  85.71 CFM
• Airflow (m3/h)
  145.62 m3/h
• Static pressure
  2.78 mmH2O
• Fan input power
  2.16 W
• Fan max input current
  0.18 A
• Fan input voltage
  12 V
• Fan starting voltage
  7 V
• LED input power
  1.50 W
• LED max input current
  0.30 A
• LED input voltage
  5 V
• Low (0-20%) PWM speed
  500 RPM
• Low PWM noise level
  14.8 dB(A)
• Low PWM airflow
  20.68 CFM
• Low PWM static pressure
  0.36 mmH2O
• MTBF
  100,000 hours
• Fan weight
  169 g
• Cable length
  500 mm
• Cable type
  Black sleeved

Other

• Package contents
  Prisma AL-12 PWM 140 mm fan, 4 x fan screws / 3x Prisma AL-12 PWM 140 mm fan, 12x fan screws (3-pack)
• Package weight
  212 g / 592 g (3-pack)
• Package dimensions (Including hanging tab)
  182 x 122 x 30 mm / 202 x 122 x 80 mm (3-pack)
• Package dimensions (Excluding hanging tab)
  147 x 122 x 30 mm / 157 x 122 x 80 mm (3-pack)
• EAN
  7340172701590 / 7340172701613 (3-pack), White version: 7340172705758
• UPC
  843276101596 / 843276101619 (3-pack), White version: 843276105754
• JAN
  4537694264167 / 4537694264211 (3-pack), White version: 4537694313179
• Product code
  FD-FAN-PRI-AL12-PWM / FD-FAN-PRI-AL12-PWM-3P (3-pack), White version: FD-FAN-PRI-AL12-PWM-WT
