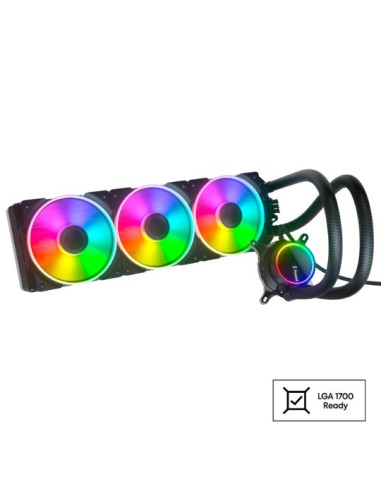

Celsius+ S36 Prisma

• • Tinted glass pump face with backlit logo and ARGB LED effects

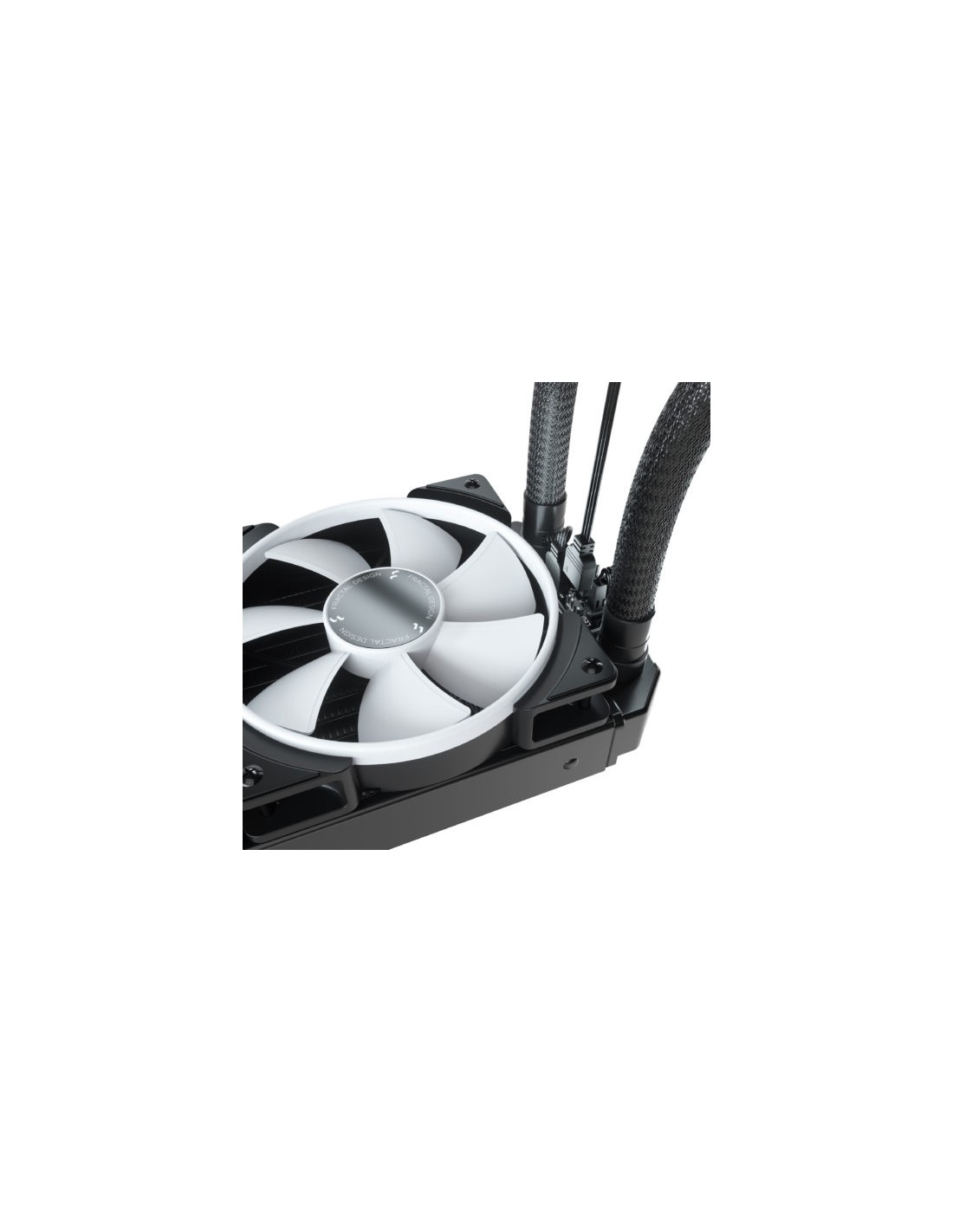

• • Articulating elbow fittings make tubes easier to route and reduces tension on the pump
• • Backed by a 5-year warranty for extended peace of mind
• • Compatible with LGA 1700 and AM5
• https://www.fractal-design.com/products/water-cooling/celsius/celsius-plus-s36-prisma/Celsius+%20S24%20Prisma/

• General specifications

  • Sockets supported (Intel)
    1700*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
  • Sockets supported (AMD)
    AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
  • * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
  • Coldplate material
    Copper
  • Thermal paste
    Pre-applied
  • Tube length
    400 mm
  • Tube material
    Low-permeability rubber with braided nylon sleeve
  • Fittings, block side
    Articulating 90-degree elbow
  • Fittings, radiator side
    Straight rotary
  • Fan control
    Dual mode (Auto/PWM)
  • Note:
    The Celsius+ is NOT compatible with the Adjust R1

  Fan specifications

  • Fan type
    Prisma AL-12 PWM ARGB
  • Rotational speed
    500 – 2000 RPM
  • Bearing
    LLS
  • PWM control
    Yes
  • Acoustical noise (full speed)
    32.7 dBA
  • Maximum air flow
    85.71 CFM
  • Maximum static pressure
    2.78 mm H2O
  • Input voltage
    12V DC
  • Maximum input current
    0.18A
  • MTBF
    100,000 hours

  Pump specifications

  • Rotational speed
    800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
  • Bearing type
    Ceramic bearing and shaft
  • PWM control
    Yes
  • Acoustical noise (full speed)
    20 dBA
  • Maximum pressure
    14.4 kPa / 1.46 mm H2O /2.0 PSI
  • Input voltage
    12V DC
  • Input current (without fans)
    0.36A
  • MTTF
    50,000 hours
  • Block height
    45 mm
  • Block measurements (with fittings)
    86 x 75 mm
  • Block diameter (main block body)
    62 mm

  Radiator specifications

  • Dimensions
    123 x 30 x 403 mm
  • Housing material
    Aluminum
  • Fin material
    Aluminum
  • Fan screw threads
    6-32

  Other

  • Package contents
    Celsius+ S36 unit, 3 x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws
  • Package Dimensions
    470 x 180 x 145 mm
  • EAN
    7340172702122
  • UPC
    843276102128
  • JAN
    4537694275569
  • Product code
    FD-W-2-S3602
  • Warranty
    5 years
